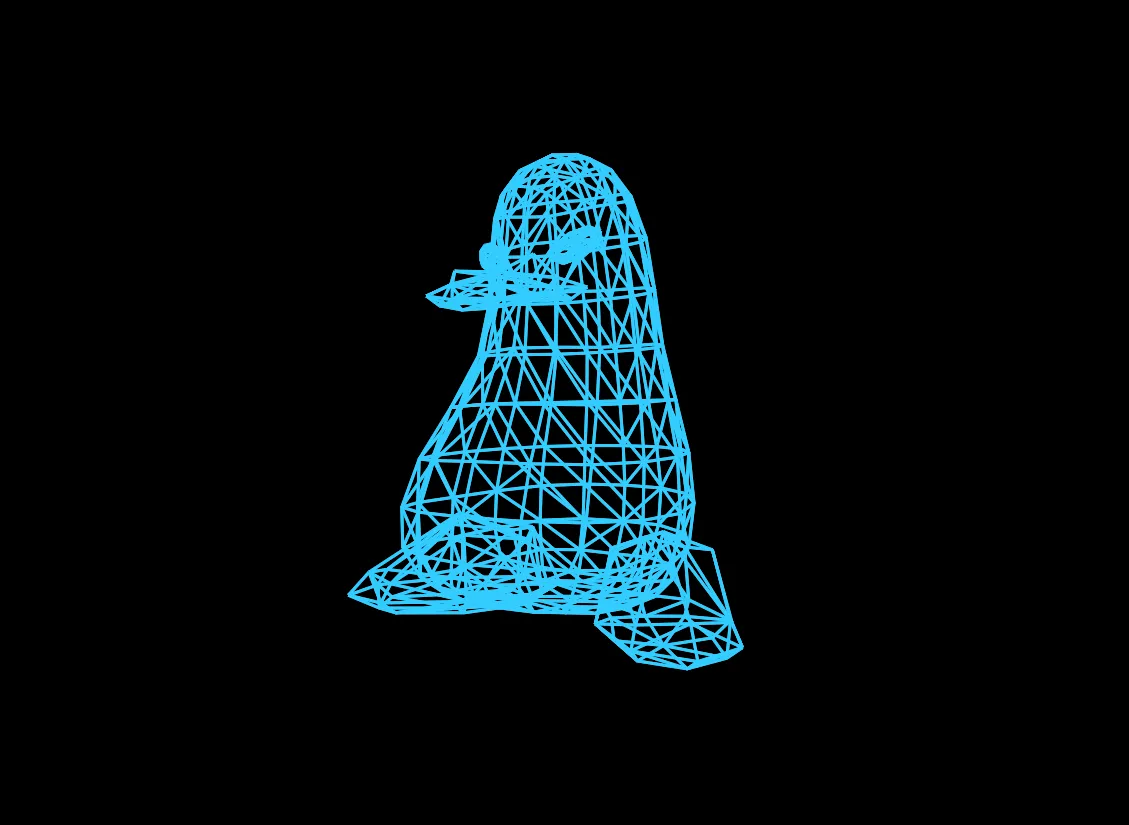

3pp - 3d perspective projection, is an example demo of rendering 3d models onto a 2d plane using perspective projection. The project is only for educational purposes only and is not meant for anything serious.
Algorithm
It is derived from this formula:
Given a point (x, y, z) in 3d space, the 2d point on the screen is given by:
x' = xf / z
y' = yf / z
where f is the distance between the image plane and the center of projection.Features
- Scroll to zoom in/out
- Drag to rotate the model
Run
You can run the demo by cloning the repo and install serve to run it locally.
npm install -g serve
git clone https://github.com/nibtr/3pp
cd 3pp
serve .or visit the demo.
References
The demo is mostly referenced from this video by Tsoding. He explains the algorithm pretty clearly.
I also did some additional read on:
- https://www.cse.unr.edu/~bebis/CS791E/Notes/PerspectiveProjection.pdf
- https://en.wikipedia.org/wiki/Rotation_matrix
License
MIT
